From Rumbles to Silence: Strategies for Urban Rail Vibration Management

• ISO 14837: Provides procedures for measuring, predicting, and assessing vibrations and ground-borne noise from rail systems, including metros. It establishes standardized methods for measurement, predictive modeling, and criteria for building and human comfort.
• BS 6472-1:2008: Focuses on human response to building vibrations, introducing the Vibration Dose Value metric to quantify exposure and define acceptable thresholds for various environments.
• U.S. FTA Guidelines: The Transit Noise and Vibration Impact Assessment Manual outlines criteria, mitigation measures, and predictive tools for evaluating transit project vibration impacts.
• DIN 4150-3: Provides limits on vibrations to prevent structural damage, specifying maximum permissible levels for different building types.

There is no single global policy dedicated to mitigating vibration impacts from Tunnel Boring Machine (TBM) operations in metro projects. However, many countries include guidelines and standards within broader environmental and construction management frameworks. Key operational parameters for reducing vibration levels during in-situ excavation include cutter head torque, thrust, cutter speed, and penetration.

Diverse geotechnical conditions, the lack of region-specific vibration standards, and limited access to advanced monitoring technologies hinder effective assessment. High mitigation costs and a shortage of local expertise further complicate implementation. Rapid, unplanned urbanization exacerbates the issue, requiring frequent updates to vibration impact assessments.

Community engagement poses another challenge, as public awareness and acceptance of mitigation measures vary.

To address this, vibration monitoring should begin in the pre-construction phase, with seismographs and accelerometers installed near the proposed metro alignment to measure ambient vibration levels. During operations, permanent vibration sensors along tracks and near sensitive receptors, supplemented by periodic manual surveys, can ensure effective monitoring.

By integrating real-time data with 3D structural models, Building Information Modeling allows for the visualization, simulation, and analysis of vibrations. It enables advanced simulations of vibration propagation, supports collaboration among stakeholders, and facilitates predictive maintenance by tracking vibrations over time. Virtual simulations can identify high-risk zones, enhancing transparency and decision-making. This solution is increasingly recognized as a valuable tool in the lifecycle management of metro and railway infrastructure.

Applications in India

Delhi-Meerut RRTS: India’s first semi-high-speed rail corridor uses Building Information Modeling throughout its project lifecycle. The software has optimized design, construction planning, and management while improving stakeholder collaboration and decision-making. Key mitigation measures include vibration-absorbing rail pads, noise barriers for elevated sections, and advanced tunneling techniques with optimized designs for underground sections to reduce vibrations near sensitive areas.

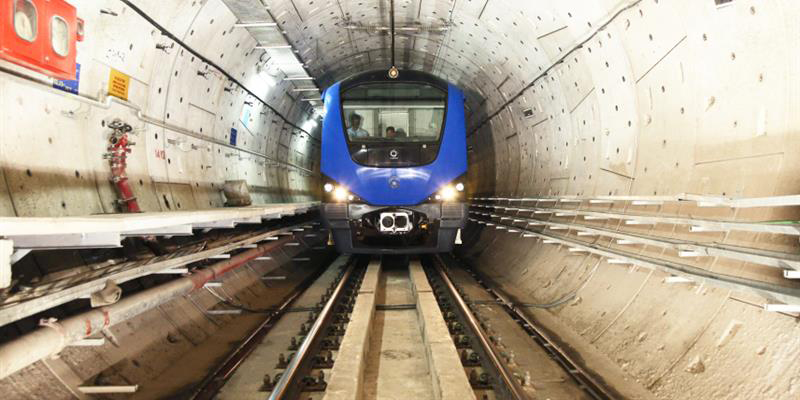

Chennai Metro: Building Information Modeling is integral to Chennai Metro’s Phase II expansion. Detailed 3D models have improved visualization and coordination across engineering disciplines, leading to higher construction quality and cost efficiency. The project employs floating slab tracks in underground sections and resilient fasteners in elevated areas to minimize ground-borne vibrations, especially near hospitals and schools. Continuous monitoring ensures the effectiveness of these mitigation strategies.

For Chennai Metro, baseline vibration assessments were conducted at eight locations along the future Corridor 3 alignment. Peak Particle Velocity (PPV) was used as the indicator to evaluate vibration strength. The Transit Noise and Vibration Impact Assessment Manual of U.S. FTA provided the methodology for a quantitative assessment^[1].

Of the eight sensitive buildings assessed, three (37.5%) were educational centers, two (25%) were religious institutions (churches/temples), two (25%) were hospitals, and one was a residential building. The FTA guidelines propose three base curves for evaluating induced vibration levels as a function of distance between the source and the receptor, categorized by source type: locomotive-powered passenger or freight trains, rapid transit or light rail vehicles, and rubber-tired vehicles.

For Corridor 3, considering the characteristics of the rolling stock, the rapid transit or light rail vehicles curve was used as the base for ground surface vibration levels. Figure 1 illustrates base vibration curves for five train speeds, showing that higher speeds induce greater vibrations. Predictions for Corridor 3 were made for both the design speed of 49.7 mph (80 km/h) and the scheduled speed of 19.9 mph (32 km/h).

Figure 1: Ground Surface Vibration Curves

Source: Asian Development Bank. 2022. Environmental Impact Assessment Report for Corridor 3 - Annexure 11.

For Corridor 3, considering the characteristics of the rolling stock, the rapid transit or light rail vehicles curve was used as the base for ground surface vibration levels. Figure 1 illustrates base vibration curves for five train speeds, showing that higher speeds induce greater vibrations. Predictions for Corridor 3 were made for both the design speed of 49.7 mph (80 km/h) and the scheduled speed of 19.9 mph (32 km/h).

Figure 2: Predicted Vibration Level in Elevated Sections

Source: Asian Development Bank. 2022. Environmental Impact Assessment Report for Corridor 3 - Annexure 11.

The FTA Manual provisions were applied to assess railway-induced ground-borne vibrations during both the operational and construction phases. For train pass-by vibrations, distances between the track center and receptors were evaluated for underground and elevated sections at both design (80 km/h) and scheduled (32 km/h) speeds.

• Underground Sections: At 80 km/h, vibrations affected buildings up to 58 meters away for masonry structures. At 32 km/h, this distance reduced to 20 meters.
• Elevated Sections: At 80 km/h, vibrations affected buildings up to 29 meters away. At 32 km/h, this distance reduced to 10 meters.

Figure 3: Predicted Vibration Level in Underground Sections

Source: Asian Development Bank. 2022. Environmental Impact Assessment Report for Corridor 3 - Annexure 11.

Detailed vibration modeling is essential to assess whether the following mitigation measures can fully address negative impacts:

• Ballasted tie-welded track: Elastic steel fastenings and plastic or rubber absorbing pads will be used to reduce noise and vibration. Maintaining the condition of wheels and rails will minimize surface irregularities that contribute to vibration.
• Elastic pads: Installing elastic pads between the rail seat and the track slab, as well as between the track slab and the underlying superstructure, will help reduce vibration transmission.

Figure 4: Vibration Damping Devices in Track

Source: Getzner Werkstoffe.

Residual impacts ranging from ground-borne noise to long-term structural effects highlight the need for adaptive and ongoing management. The deployment of advanced materials, community engagement, and operational optimizations, alongside continuous research and innovation can help minimize these impacts further.

As urban rail systems expand to meet the growing demands of modern cities, a commitment to holistic vibration management will remain indispensable for balancing development with quality of life and environmental stewardship.

By prioritizing resilience and collaboration, the future of urban transit can be both efficient and harmonious with its surroundings, setting a global benchmark for sustainable infrastructure.

Asian Development Bank (ADB). 2022. Chennai Metro Rail Investment Project: Corridor 3 Updated Environmental Impact Assessment.

ADB. India: Delhi-Meerut Regional Rapid Transit System Investment Project.

C. Hanson et al. (2006). Transit Noise and Vibration Impact Assessment. Federal Transit Administration, U.S. Department of Transportation.

D. Anderson and S. Kumar. (2018). Vibration Mitigation in Urban Environments: Techniques and Technologies. Journal of Environmental Engineering. 144(3). pp. 1-15.
